Nibbling technology
Nibbling
![](https://2b50e5e8a3.clvaw-cdnwnd.com/a6e4bcae6dd103528cf664608fd490eb/200000100-bf421c03ab/nibbelo_gepek_amanda_vipros.jpg?ph=2b50e5e8a3)

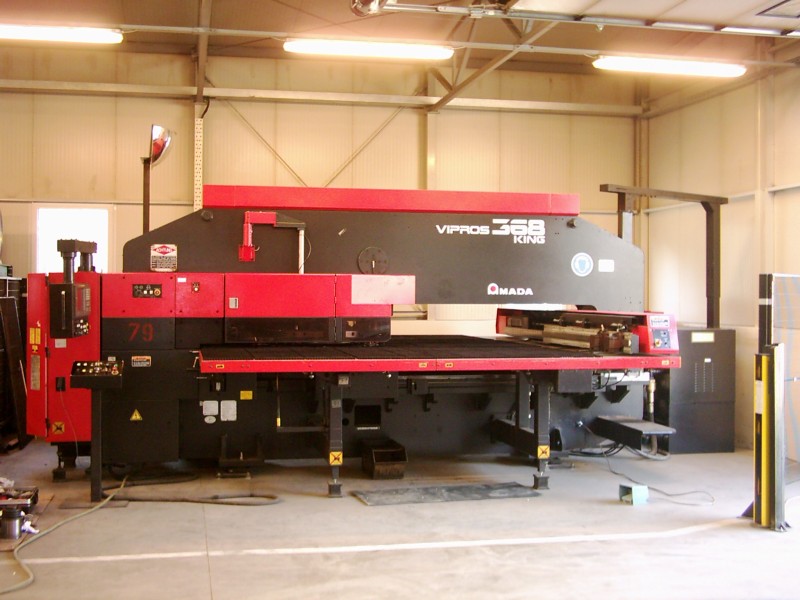

Amada Vipros 368 King
- modern computer-controlled revolver cutter
- Power: 300 kN
- Range of motion with automatic adjustment: 1525x4000 mm
- Plate max. thickness: 3.2 mm
- Plate max. weight: 60 kg
- Cutting accuracy: +/- 0.1 mm
- Beats per minute:
- 8mm distance: 400 strokes
- 25.4 mm distance:
- X 340 strokes
- Y 290 strokes
- Max stroke length: 40 mm
- Max. Feed rate:
- x = 80 m / min, y = 80 m / min
- Revolution speed: 30 rpm
![](https://2b50e5e8a3.clvaw-cdnwnd.com/a6e4bcae6dd103528cf664608fd490eb/200000110-490bc4a061/nibbelo_gepek_presek.jpg?ph=2b50e5e8a3)
Mechanical presses
- Load capacity: 5-100 t
- Material thickness: up to 0.8-6 mm
- Equipped with special tools:
- punches
- oval tools
- general hips.
.
